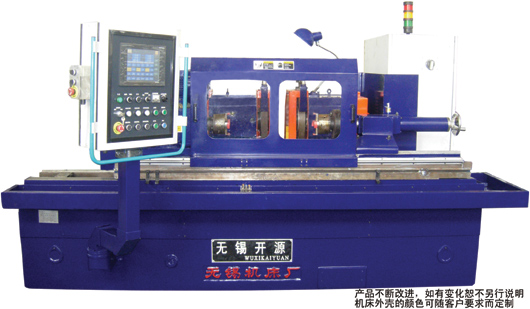

CNC monocrystalline silicon grinder WX-7323
|
Machine Tools Use and Performance: 1. This machine is the special purpose rolling grinding machine for the single-crystal silicon. 2. The overall arrangement of cylindrical grinding machine, double grinding heads, adamas, fiber parallel abrasion wheel are applied; 3. The bed, pulley stock, loading carriage and feeding carriage are castings, which has the characteristic of good stiffness and good seismic, 4. loading and feeding material use the v-type guideway, ball screw, and servo motor; 5. The headstock and tailstock use four-paw clamps, the clamps have the characteristic of high accuracy and benefit operation(12”clamp is optional); 6. The headstock use stepless frequency conversion timing 7. The grinding grain direction of single-crystal silicon exciecle is perpendicular to axis, and is the same with machining direction of wire slicing machine, so the crack can’t appear during the slice progress; 8. The electric system uses the imported CPU of Mitsubishi.
Technical Specifications: |
Maximum grinding diameter |
Φ6〞~ 12〞 |
Maximum grinding length |
1000mm | |
|
|
|
|
